Resistors powered up to 600 W in aluminum housing with connection wires in
insulation made of glass. They are characterized by quiet operation and a high degree of protection IP54.
Typical application: inhibition of propulsion systems with a small moment of
inertia.
Installation: horizontal or vertical - wires set downwards.
Wire length: 350mm
Wirewound resistors in housing made of galvanized perforated sheet. High overload
capacity. Temperature sensor and fan in option. Compacted construction. Power range up to 3500 W.
Typical application: inhibition of propulsion systems, cranes, gantry cranes.
Resistance range: from 18 Ω to 90 Ω.
Power range: from 1200 W to 3500 W.
Degree of protection: IP20, optional IP21.
Junction box to protect the terminals.
Wirewound resistors in housing made of galvanized perforated sheet. High overload
capacity. Temperature sensor and fan in option. Compacted construction. Power range up to 3500 W.
Typical application: inhibition of propulsion systems, cranes, gantry cranes.
Resistance range: from 18 Ω to 90 Ω.
Power range: from 1200 W to 3500 W.
Degree of protection: IP20, optional IP21.

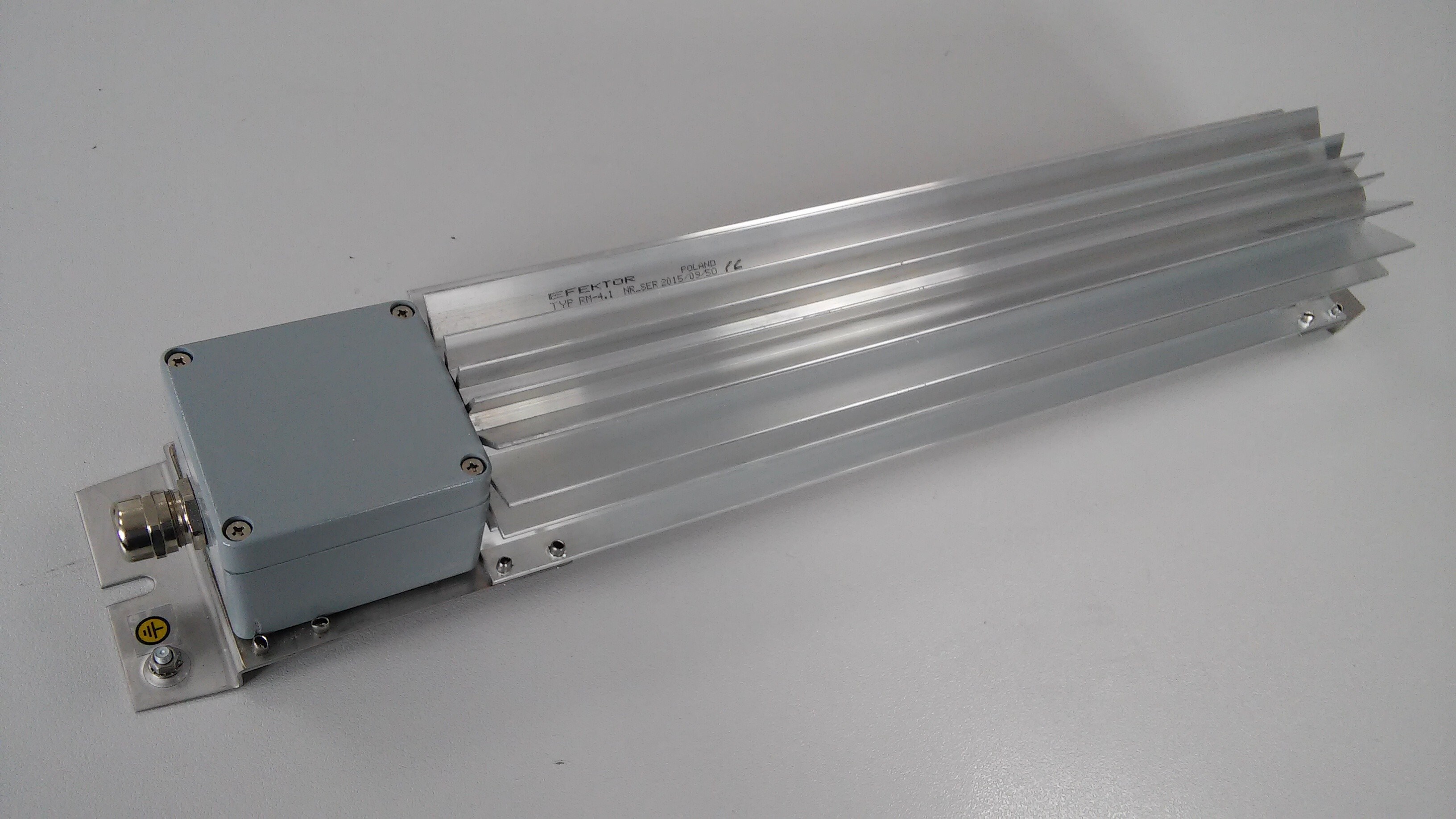

Resistors powered up to 2000 W in aluminum housing with clamps in ceramic
insulation. They are characterized by quiet operation and a large area of the radiator.
Temperature sensor in option.
Typical application: inhibition of propulsion systems, cranes, gantry cranes.
Installation: horizontal or vertical - clamps set downwards.
Degree of protection :IP54, IP52 horizontal
Resistors powered up to 2000 W in aluminum housing with clamps in ceramic
insulation. They are characterized by quiet operation and a large area of the radiator.
Temperature sensor in option.
Typical application: inhibition of propulsion systems, cranes, gantry cranes.
Installation: horizontal or vertical - clamps set downwards.
Degree of protection : IP20 horizontal
Wirewound resistors in a full sheet metal housing, galvanized and painted. High overload capacity. Temperature sensor in option.
Typical application: inhibition of propulsion systems, cranes, gantry cranes.
Housing suitable for wall mounting.
Degree of protection: IP23.
Wirewound resistors in a full sheet metal housing, galvanized and painted. High overload capacity. Temperature sensor in option.
Typical application: inhibition of propulsion systems, cranes, gantry cranes.
Degree of protection: IP23.
Wirewound resistors in housing made of galvanized perforated sheet. Large power
range: up to 100 kW. High overload capacity. Temperature sensor and fan in option.
Typical application: inhibition of propulsion systems, cranes, gantry cranes.
Degree of protection: IP20, optional IP21.
Resistors powered up to 300 W in aluminum housing with connection wires in teflon
insulation. They are characterized by quiet operation and a relatively high degree of
protection IP54.
Typical application: inhibition of propulsion systems with a small moment of
inertia.
Installation: horizontal or vertical - wires set downwards.
Degree of protection : IP54
Wire length: 350mm
Power resistors are used in the braking circuit of the inverter wherever high dynamics of drive braking is required and in drive systems e.g. lifts, cranes, winch cranes, presses and spindle drives, where fast acceleration and fast braking or a quick change of rotational speed are required. They are adapted to receive and dissipate high power. The dimensions of the resistor depend on its power and resistance value.
We produce and sell resistors with different powers, resistances and IP protection levels. On special order we also produce resistors with unusual parameters and with forced cooling with both air and water.
Very good technical parameters and low prices make our resistors very competitive comparing to those produced by other manufacturers.
